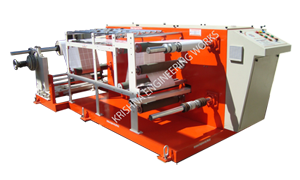

Winding Rewinding Sliting Machine with Two Stage Slitting

Winding Rewinding Sliting Machine with Two Stage Slitting

Krishna Engineering Works manufacture and supply wide variety of Winding Rewinding Slitting. Features with unwinding section, slitting section and surface winding section. It Includes razor cutting in the groove roller method with load cell sensor and Pneumatic nip rubber roller for accurate tension isolation.

Winding Rewinding Sliting Machine with Two Stage Slitting

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive

Technical Specification

 Web width

 100 to 1500 MM

 Max. Weight of Unwind

 100 to 1000 KG
  (Different models for different weight)

 Max. Parent Reel Dia.

 400 MM

 Max. Rewind Reel Dia.

 400 MM

 Rewind Core Dia.

 76 MM

 Motor

 2 HP AC / DC Motor (3, 5 HP also available on suitable model)

 Maximum Designed Speed

 100 to 150 Mtrs / Min
