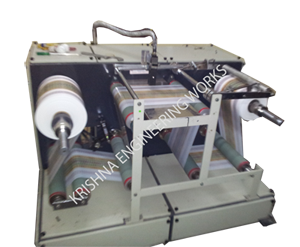

Doctoring Rewinding Machine Table Top

Doctoring Rewinding Machine Table Top

We are genuine manufacturer of Doctoring Rewinding Machine Table Top, Generally it is used for all types of Laminates like, Foil, Paper, LDPE, HDPE, PVC. Also, majorly used in application for converting, rewinding correction, and batch printing. Our Doctoring Rewinding Machine Table Top is manufactured with us most precision which ensure zero maintenance up to 10 years.

We have been successfully Manufacturing, Exporting & Supplying all types of Doctoring Rewinding Machine Table Top and Winding Rewinding Machine for Inkjet Printer & Batch Printing since last 25 years from Ahmedabad, Gujarat, India. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing.

Doctoring Rewinding Machine Table Top

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive

Technical Specification

 Web width

 100 to 1500 MM

 Max. Weight of Unwind

 100 to 1000 KG
  (Different models for different weight)

 Max. Parent Reel Dia.

 400 MM

 Max. Rewind Reel Dia.

 400 MM

 Rewind Core Dia.

 76 MM

 Motor

 2 HP AC / DC Motor (3, 5 HP also available on suitable model)

 Maximum Designed Speed

 100 to 150 Mtrs / Min
