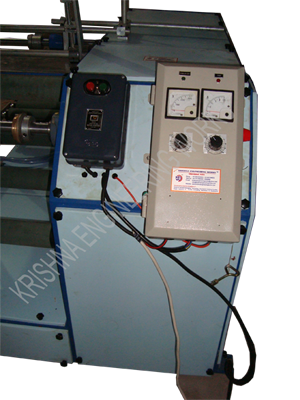

Repairing & Servicing of Control Panel for Doctoring Rewinding Machine
Our Repairing & Servicing of Control Panel for Doctoring Rewinding Machine is used for all types of Laminates like, Foil, Paper, LDPE, HDPE, PVC, etc. Our Repairing & Servicing of Control Panel for Doctoring Rewinding Machine is manufactured with us most precision which ensure zero maintenance up to 10 years.We have been successfully Manufacturing, Exporting & Supplying all types of Repairing & Servicing of Control Panel for Doctoring Rewinding Machine and Winding Rewinding Machine for Inkjet Printer & Batch Printing since last 25 years from Ahmedabad, Gujarat, India. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing.
- Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
- Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
- The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
- It is great substitute to online coding / batching operation
- Convenient height for operation
- Compact Design
- Variable speed drive
- Double drive
Technical Specification |
|
Web width |
100 to 1500 MM |
Max. Weight of Unwind |
100 to 1000 KG |
Max. Parent Reel Dia. |
400 MM |
Max. Rewind Reel Dia. |
400 MM |
Rewind Core Dia. |
76 MM |
Motor |
2 HP AC / DC Motor (3, 5 HP also available on suitable model) |
Maximum Designed Speed |
100 to 150 Mtrs / Min |
