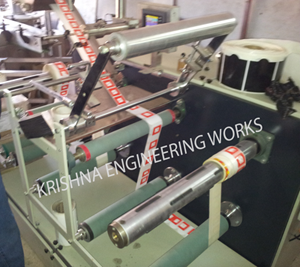

Label Application Doctoring Rewinding Machine
We have specially designed and built label doctoring machine for inspect the printing quality and sealing quality. It allows max width of inspect upto 300mm with label roll into smooth edge side surface.
- Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
- Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
- The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
- It is great substitute to online coding / batching operation
- Convenient height for operation
- Compact Design
- Variable speed drive
- Double drive
Technical Specification |
|
Web width |
100 to 1500 MM |
Max. Weight of Unwind |
100 to 1000 KG |
Max. Parent Reel Dia. |
400 MM |
Max. Rewind Reel Dia. |
400 MM |
Rewind Core Dia. |
76 MM |
Motor |
2 HP AC / DC Motor (3, 5 HP also available on suitable model) |
Maximum Designed Speed |
100 to 150 Mtrs / Min |
